Wake on Lan (WOL) GUI

A graphical interface to send a Wake-on-Lan packet made in Unity.

• Wake on Application Startup
• Run as a startup app (Windows Installer)
• Ping's an IP address when there is response opens website(s)

How to use:

All settings are stored in in an JSON file named:

WOL_CONFIG_SETTINGS.json

Modify the JSON to change settings/parameters.

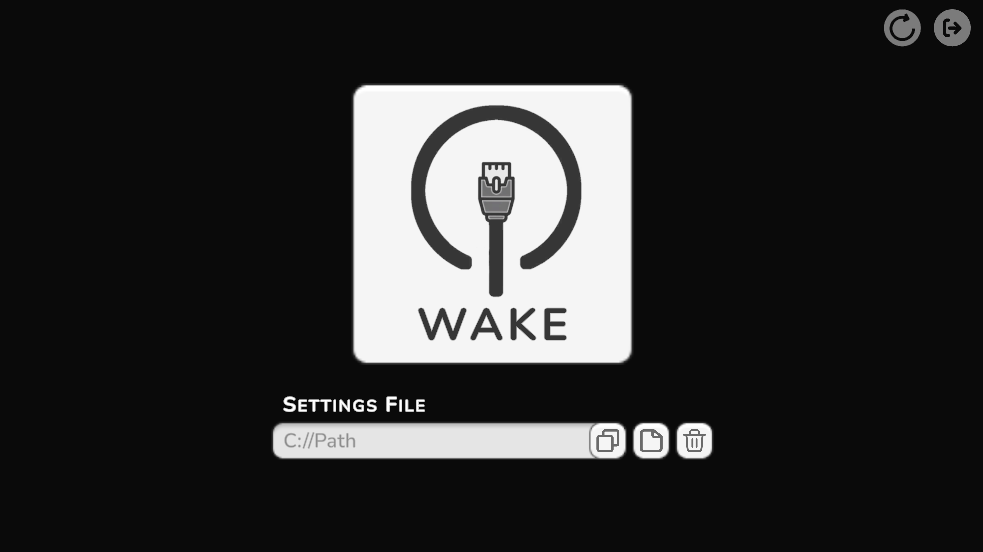

UI Buttons:

• Wake button
• Copy button - copies the path of the JSON file.
• File button - opens the file in your default text editor program (creates new JSON if none found).
• Delete button - deletes the existing JSON file instance.
• Reset
• Quit

Settings and Flags:

• StartFullscreen: Starts the application in fullscreen (default: false)

• DefaultResolution: Set a custom windowed resolution. StartFullscreen must be false. Set to default values of (0,0) to automatically scale window resolution to 50% of monitor resolution. (default: x=0, y=0)

• ExecuteWakeOnStart: On application startup will automatically execute the wake-on-lan command after the set amount of WakeOnStartDelay along with any other overloads such as launching sites and quitting. (default: false)

• WakeOnStartDelay: how much delay before it starts execution. This gives you time to enter the reset hotkey if access to GUI is needed with QuitApplicationAfterWake flag set  (default: 3.0)

• MAC: must be in the format of FF:FF:FF:FF:FF:FF

• BroadcastAddress: Recommended to not touch if you don't know what your are doing. (default: 255.255.255.255)

• BroadcastPort: Recommended to not touch if you don't know what your are doing. (default: 9)
• LaunchSitesAfterWake: enables loading of websites when ping from device/server returns(default: false)
• QuitApplicationAfterWake: Quits application after wake or sites loaded if  LaunchSitesAfterWake is true (default: false)
• Ping_IP: The usually local IP address of the device/server you are trying to turn on. When it returns a successful ping sites will be loaded.
• SitesToLoad: Array of websites to load after the ping of the server address is successful. LaunchSitesAfterWake must be true and Ping_IP must be set.

Advanced:

Default path on Windows is :

C:/Users/<USERNAME>/AppData/LocalLow/TurnipTossProductions/WAKE (WOL-GUI)/WOL_CONFIG_SETTINGS.json

Press [F2] or [DELETE] to reset  ExecuteWakeOnStart, WakeOnStartDelay, LaunchSitesAfterWake, QuitApplicationAfterWake to default values

This allows you to make changes to the JSON config file through GUI even if QuitApplicationAfterWake flag is enabled.

Github

https://github.com/apurplecaboose/WOL-Unity
